IntroductionKey Features:🧊 Rear Insulated Cargo BoxEquipped with a high-quality thermal insulated box at the rear, the vehicle is ideal for maintaining the desired temperature of perishable goods

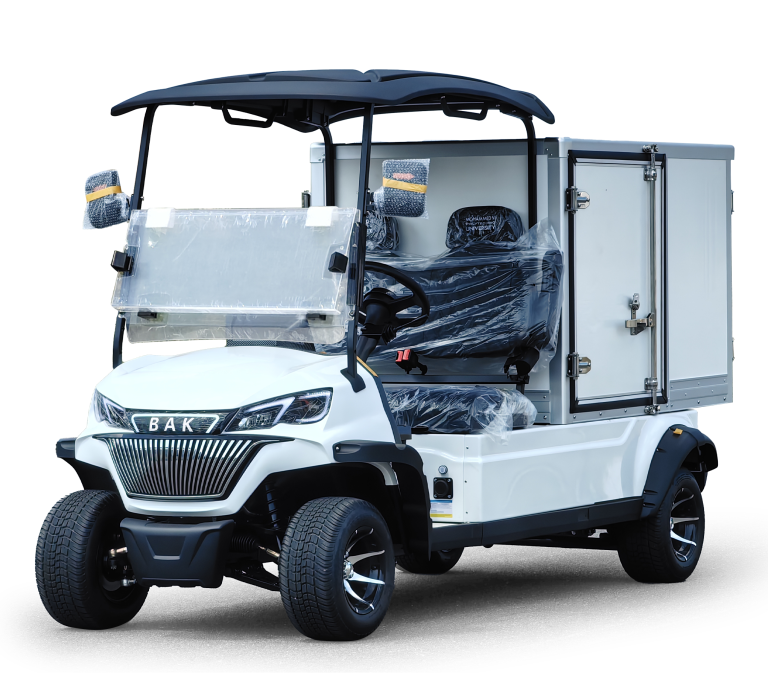

The 2-Seater Electric Insulated Vehicle is a purpose-built solution designed for efficient and eco-friendly transportation of temperature-sensitive goods. Whether you’re delivering food, medical supplies, or specialty items, this compact electric vehicle ensures freshness and protection from environmental fluctuations.
Services: ODM & OEM Available; Customization & Upgrades Available
Passenger Capacity: 2 people
Standard Battery: 48V150Ah(Upgrades Available)
Max Range: 60-70 km(20 km/h on flat ground)
Battery Type: LiFePO4 Battery Pack
Key Features:

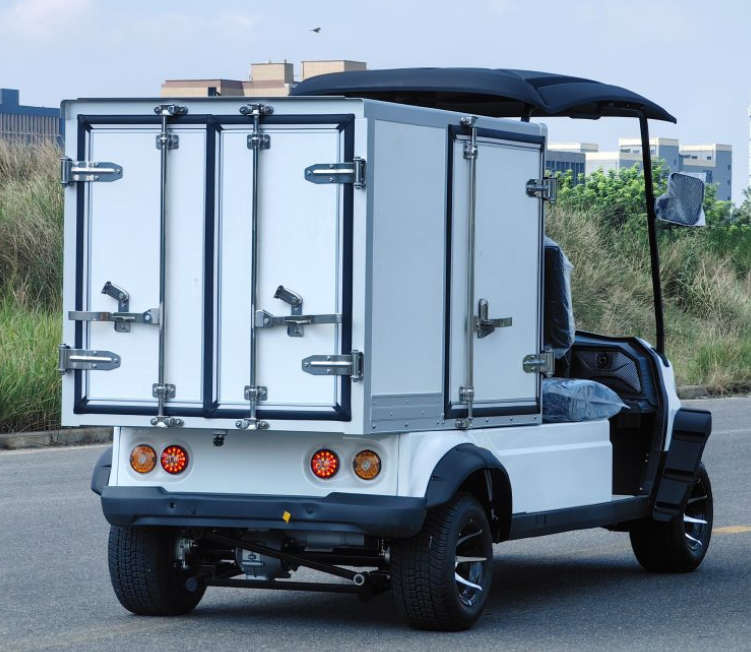

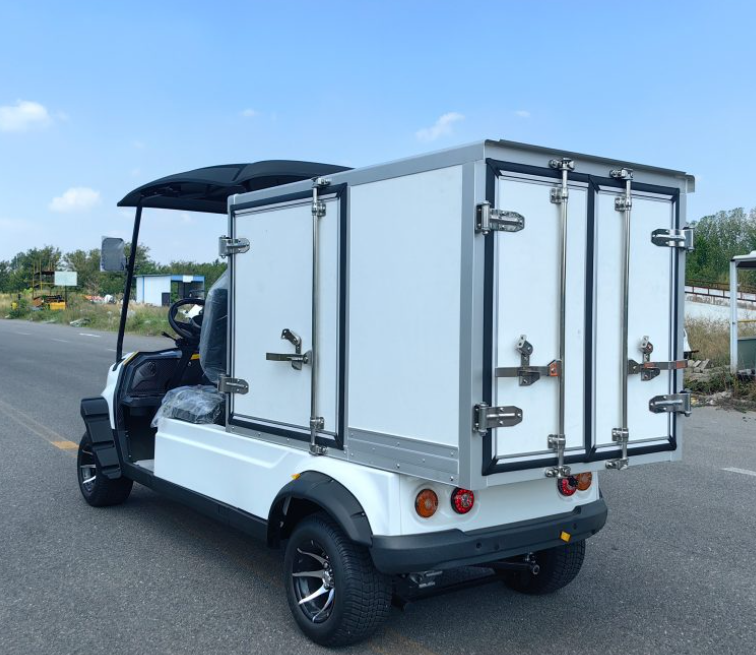

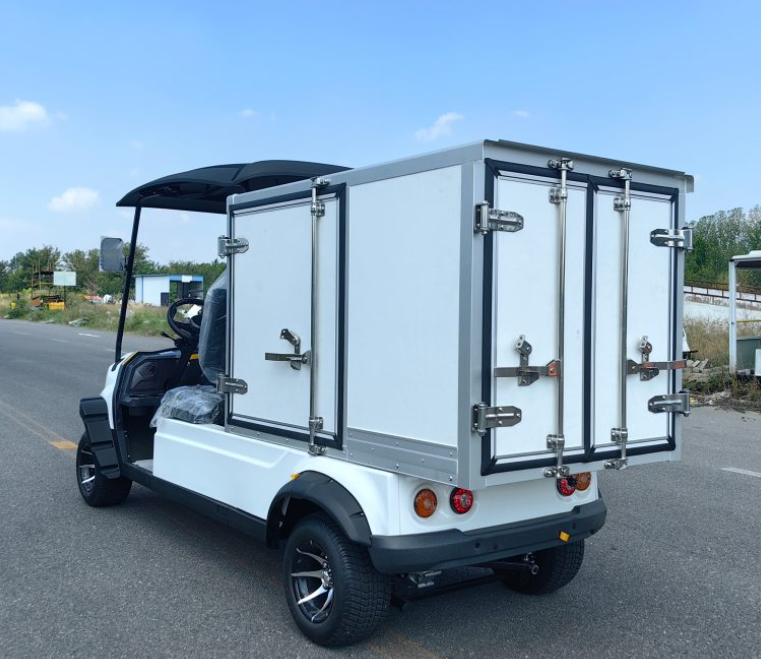

🧊 Rear Insulated Cargo Box
Equipped with a high-quality thermal insulated box at the rear, the vehicle is ideal for maintaining the desired temperature of perishable goods. Optional cooling or heating units can be integrated based on application needs.
🔋 Eco-Friendly Electric Drive
Powered by a maintenance-friendly electric motor, the vehicle delivers quiet operation, zero emissions, and cost-effective performance—perfect for indoor and outdoor use.
📦 Secure & Accessible Storage
The insulated box is spacious, lockable, and easy to access, ensuring safe transport and handling of food, medicine, or other temperature-controlled goods.
⸻
Ideal For Use In:
• Food & beverage delivery
• Hospital & pharmaceutical logistics
• Hotel and resort catering
• Factory or warehouse distribution
• Airports & large campuses
| Model | Electric Insulated Vehicle |
| Seating capacity | 2 |
| Configuration | Standard Type |
| Basic technical parameters | |
| External dimensions Length*Width*Height (mm) | 3590*1370*1875mm |
| Rated passenger capacity (persons) | 2 |
| Wheelbase (mm) | 2510mm |
| Front track width (mm) | 895mm |
| Rear track width (mm) | 1010mm |
| Curb weight | 590kg |
| Maximum speed (MPH) | 20 |
| Maximum climbing angle | 25% no load; 20% full load |
| Maximum range (miles) | 60-70km (20 km/h on flat ground) |
| Minimum ground clearance (mm) | 100 |
| Minimum turning radius (m) | 4.8 |
| Braking distance (m) | ＜6 |
| Electrical system | |
| Battery type | Lithium iron phosphate battery |
| Battery capacity | 48V 150Ah |
| Charger | Wide voltage platform 110V/220V universal |
| DC-DC | 300W |
| Motor type | AC motor |
| Motor power | 5kW |
| Electronic control | Sunny |
| Central control instrument panel (no logo when powered on) | 10-inch LCD screen |
| AUX data transmission port | ● |
| Front USB charging port | ● |
| Body lighting | LED front combination lights + LED rear tail lights + LED daytime running lights |
| Rearview camera | ● |
| Chassis System | |
| Front suspension | Double wishbone independent suspension |
| Rear suspension | Trailing arm non-independent suspension |
| Rear axle gear ratio | 12.3:1 |
| Braking system | Four-wheel hydraulic brakes + electromagnetic brakes |
| Steering system | Dual-direction mechanical gear rack steering gear |
| Tire type | Road tires |
| Tire specifications | 10-inch |
| Wheel rim material | Aluminum alloy |
| Body trim parts | |
| Grille color | Chrome-plated silver |
| Front windshield | Transparent flip-up glass |
| Roof lining | Matte black square tube frame + PP black injection-molded roof |
| Water transfer printed dashboard | ● |
| Two-point seatbelts | ● |
| Floor material | Aluminum alloy floor |
| Turn signal mirrors | ● |
| Front bumper material | Plastic |
